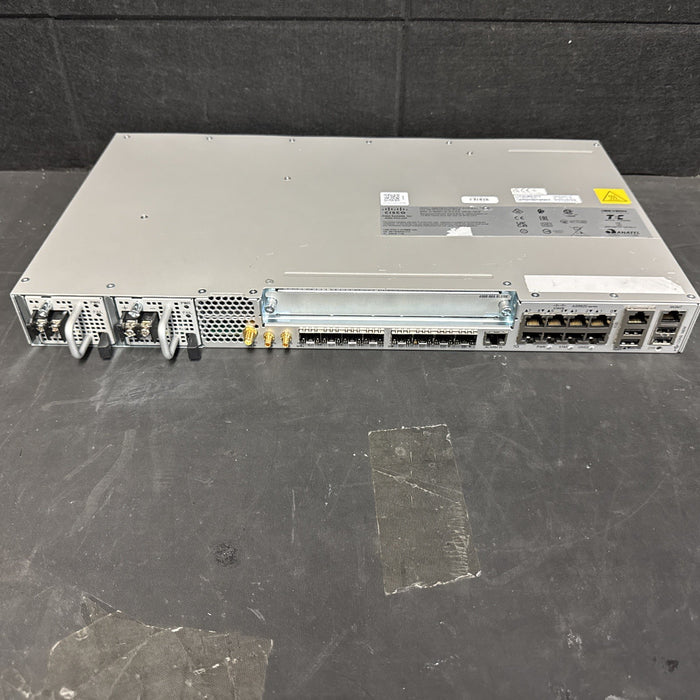

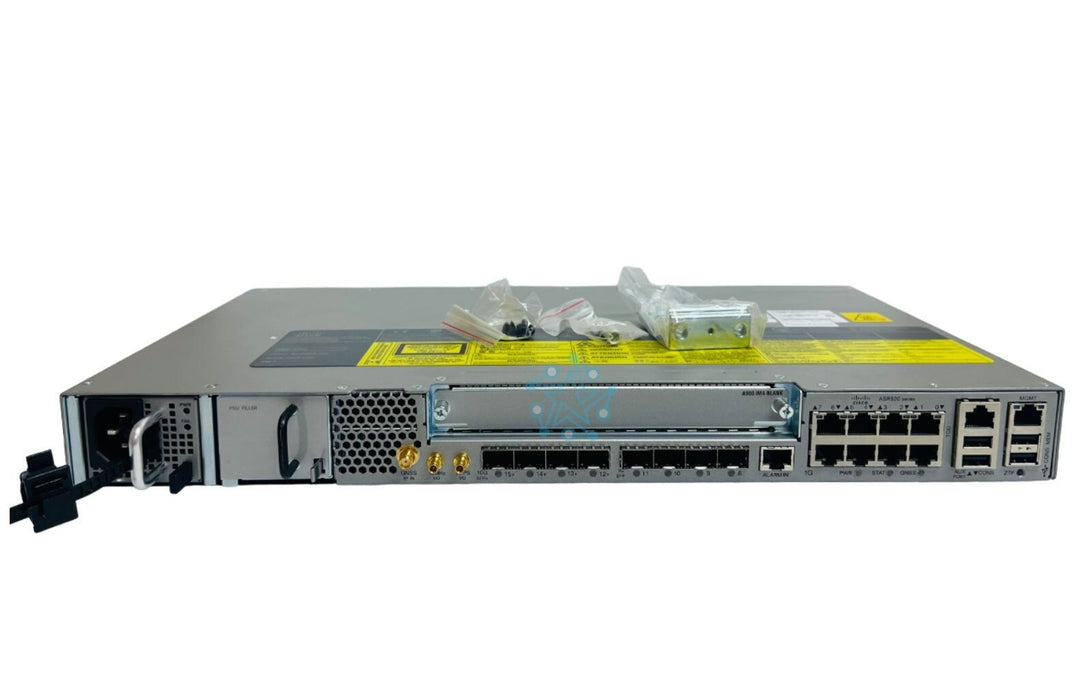

Cisco ASR-920-12SZ-IM ASR 920 Router, 12 × 1GE + 4 × 10GE SFP+, 1 IM Slot, UPoE, GNSS - Refurbished

Overview

The Cisco ASR-920-12SZ-IM is a 1RU ASR 920 Series Aggregation Services Router with 12 × 1GE ports, 4 × 1G/10G dual-rate SFP+ ports and one interface module slot. Its eight copper ports support PoE/PoE+/UPoE with a 180 W budget, and a built-in GNSS receiver can act as a grandmaster clock.

Key Specifications

• 12 × 1GE ports (8 × RJ-45 copper + 4 × SFP)
• 4 × 1G/10G dual-rate SFP+ ports
• 1 × interface module slot
• PoE/PoE+/UPoE on all 8 copper ports, 180 W overall budget
• Built-in GNSS receiver; IEEE 1588 and SyncE with ESMC/SSM
• 1+1 redundant AC/DC power supplies

Interfaces

• 8 × 10/100/1000 RJ-45 PoE/PoE+/UPoE ports
• 4 × 1G SFP ports
• 4 × 1G/10G dual-rate SFP+ ports
• 100/1000Base-T RJ-45 management Ethernet, RS-232 console, USB console and USB mass storage ports
• 10 MHz, 1PPS/ToD and GNSS antenna (SMA) timing interfaces

Hardware Specifications

• 1RU
• 1.73 × 17.5 × 11.28 in (44 × 444.5 × 286.54 mm)
• 9.25 lb (4.2 kg) empty chassis
• Field-replaceable fan tray with four fans
• Max 150 W, typical 130 W (without PoE)
