Cisco N3K-C3172PQ-10GE 48-Port 10GbE SFP+ with 6x40GbE QSFP+ Nexus 3000 Series Switch - Refurbished

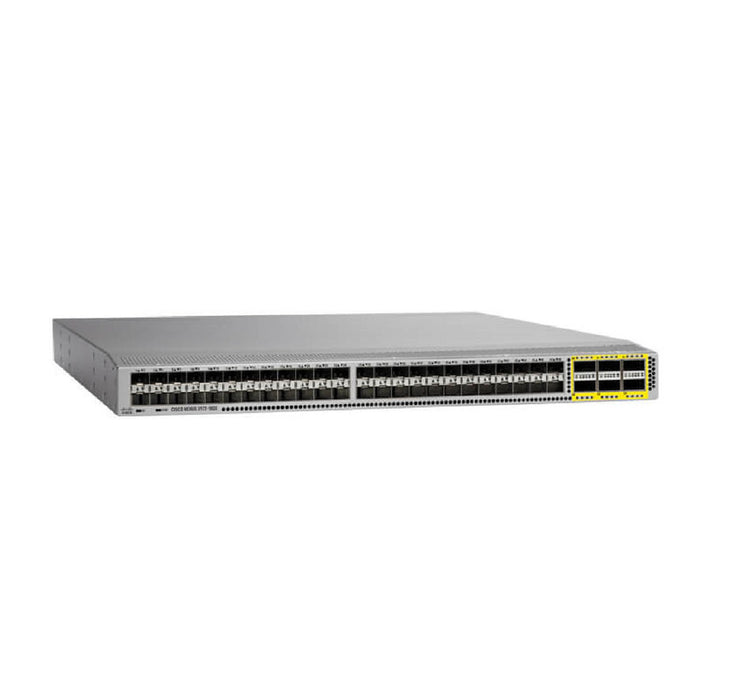

The Cisco Nexus N3K-C3172PQ-10GE (Nexus 3172PQ) is a 1RU SFP+ based top-of-rack switch from the Cisco Nexus 3000 Series with 48 SFP+ ports and six QSFP+ ports. It provides line-rate Layer 2 and Layer 3 switching on all ports under Cisco NX-OS, with up to 72 10 Gigabit Ethernet ports when the QSFP+ ports are used in breakout mode.

Key specifications

• 48 × SFP+ ports supporting 100 Mbps, 1 Gbps or 10 Gbps
• 6 × QSFP+ ports, each running at native 40 Gbps or as 4 × 10 Gbps
• 1.4 Tbps switching capacity, forwarding rate up to 1 bpps, 12 MB shared buffer
• 4 GB system memory and 2 GB boot flash
• Two redundant AC or DC power supplies, redundant (3+1) hot-swappable fans, forward or reversed airflow
• Typical power 143 W, maximum 293 W
• Base license: VLANs, vPC, RSTP/MSTP, LACP, static routing, RIPv2, OSPFv2, EIGRP stub, HSRP, VRRP and PIM-SM; LAN Enterprise adds BGP and VRF-lite
• Automation: POAP, Python scripting, Cisco EEM, NETCONF XML interface and PTP (IEEE 1588) boundary clock

Built for high-density 10 Gbps top-of-rack server access with 40 Gbps uplinks to the aggregation layer.
